The SHACMAN X3000 tipper truck, with its core advantages of super strong load capacity, excellent reliability, and ultra-low operating costs, has become the first choice for high cost-effectiveness in the field of engineering heavy-duty transportation in various industries.
Brand: SHACMAN
Model: SX32556T404
Type: Dump Truck
Loading Capacity: 30T
HS CODE:8704109000
Warranty: 1 Year
Certification: SGS, BV, CE, ISO9001, E-mark, CCC, ISO/TS16949
| MODEL | SX32556T404 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3975+1400 | |
| Max. Speed/(km/h) | 75km/h | |
Engine
| Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
| Rated output power/（PS） | 279KW/380HP | |
| Displacement(L) | 9.726L | |
Transmission
| Brand | FAST |
| Model | 12JSD200T-B--QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double reduction driving axle Speed ratio: 5.92 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850x300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 400L Aluminum alloy | |
| Tire | 12.00R20 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Cabin | X3000 medium length flat top cab without top air deflector, air main seat, four point hydraulic suspension, electric heated rearview mirror, electronic automatic temperature control air conditioning, electric window shaking machine, manual flipping, metal bumper, three-level boarding pedal, central locking, oil bath air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 165Ah maintenance free battery, SHACMAN logo, all Russian logo, front headlight protection grille, iron air storage cylinder, stainless steel wheel rim decoration cover, reverse buzzer, 2kg fire extinguisher, parking wedge, telescopic shaft control, daytime running lights | |
| Upbody | 5800*2300*1700（mm） Bottom 8 sides 6 | |
SHACMAN X3000 tipper truck is a high-performance heavy-duty truck designed specifically for construction, mining, and earthwork transportation. It is equipped with Weichai or Cummins high-power engines, Hande reinforced axles, and a Fast gearbox, providing strong and durable power; Adopting a high-strength chassis and wear-resistant cargo box, with a load-bearing capacity of 30-60 tons, SHACMAN X3000 tipper truck can adapt to various harsh and complex working conditions. Its short wheelbase design, optimized suspension system, and intelligent safety features (such as ABS and retarder) can effectively ensure efficient operation and driving safety. With high cost-effectiveness, customized solutions, and comprehensive after-sales service, SHACMAN X3000 tipper truck has become an ideal choice for the engineering transportation industry, especially suitable for heavy-duty scenarios and complex road conditions.
Detail Photos
The SHACMAN X3000 dump truck cab is divided into three types according to the size of the cab: extended high roof, extended half high roof, and semi extended half high roof. It is divided into left and right compartments to meet different regulaory requirements.

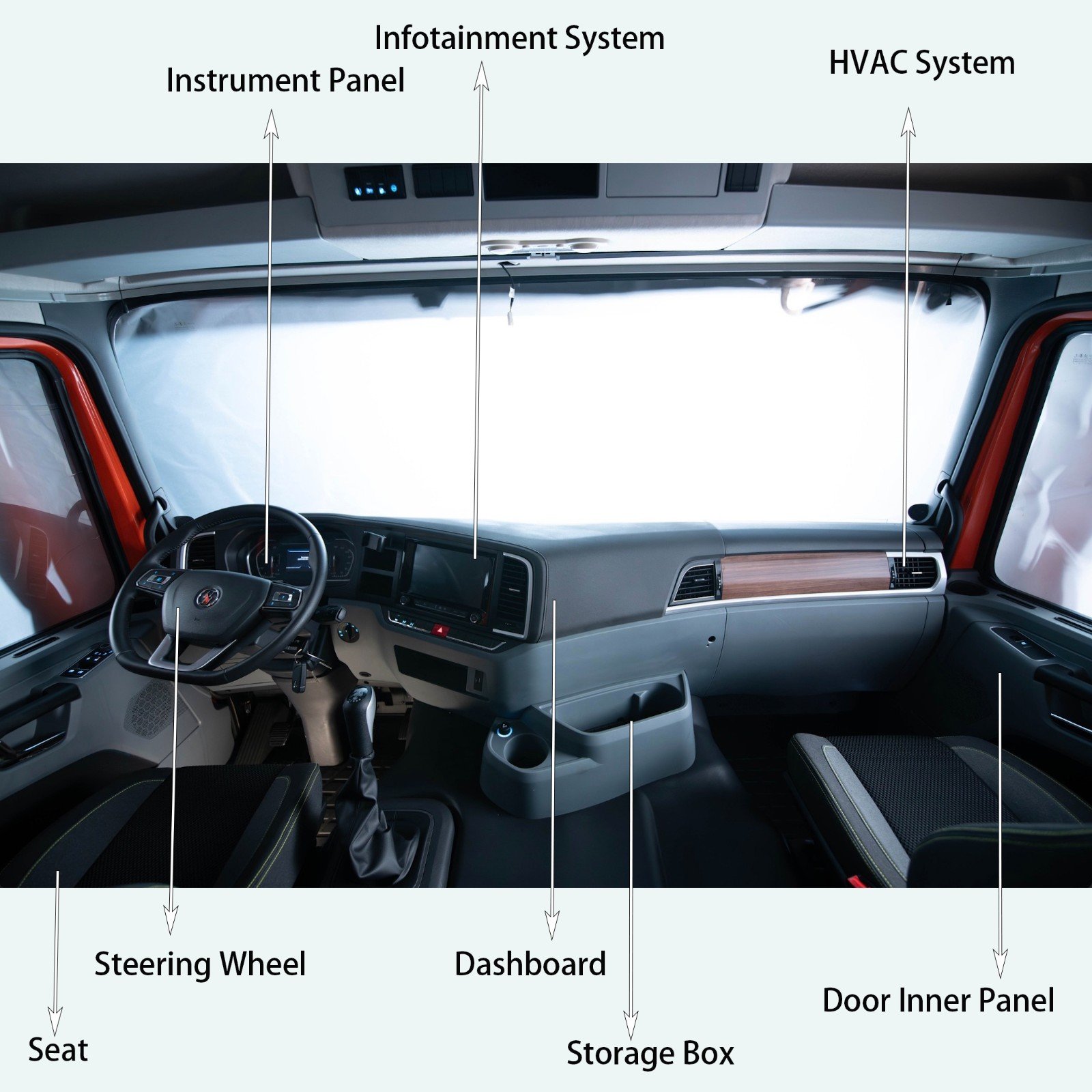

The interior of SHACMAN X3000 focuses on high-end and atmospheric design, mainly composed of components such asinstrument panel, seats, sleeper, cargo box, floor mat, and lining.

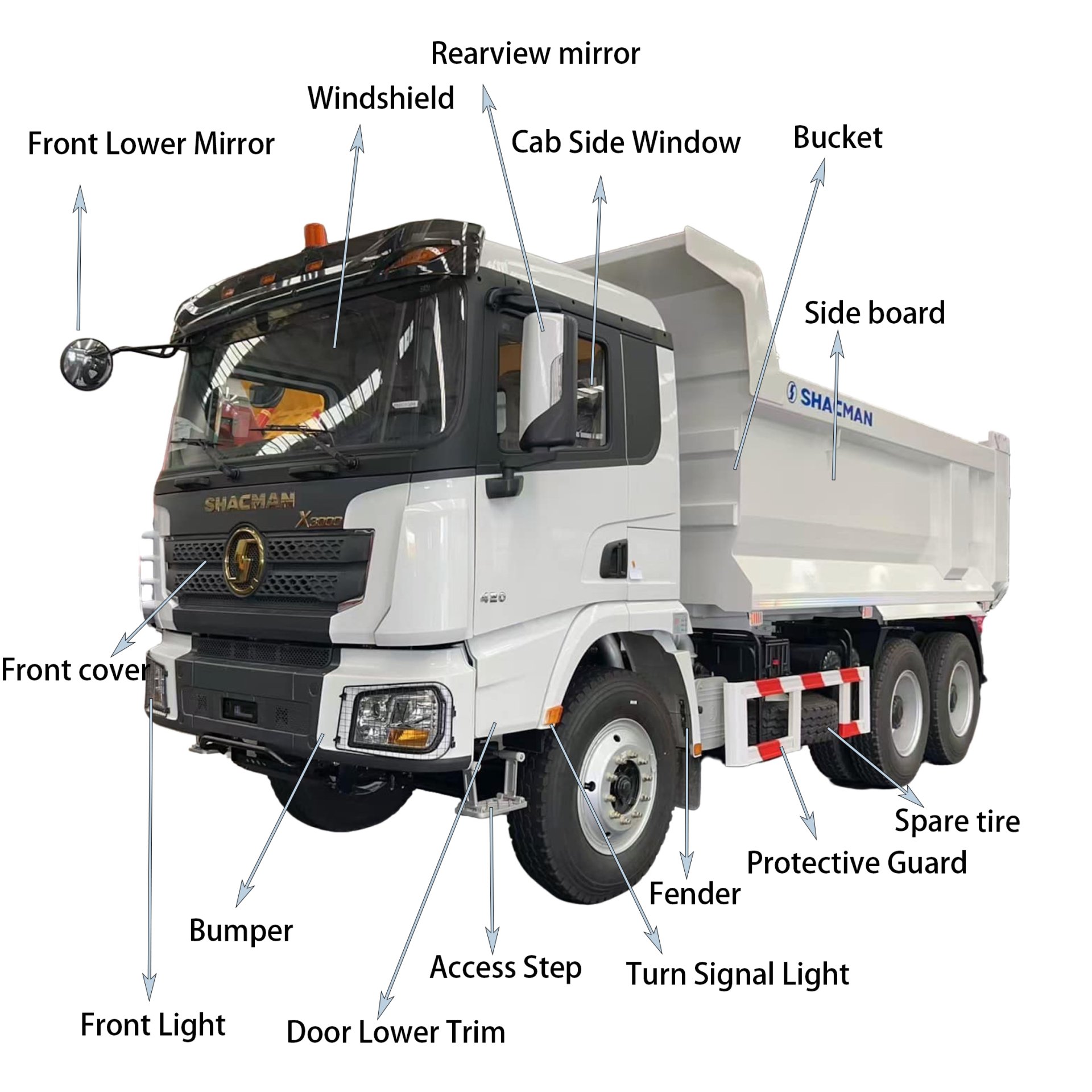

The SHACMAN X3000 tipper truck has a rugged and atmospheric appearance, equipped with the iconic black honeycomb grille front face. The body is made of high-strength alloy steel, and the overall design balances practicality and recognition.
Advantages Scenarios of SHACMAN X3000 Tipper Truck:
Efficient power: Weichai or Cummins high horsepower engine+Fast transmission, low-speed high torque output, strong climbing ability, and improved fuel economy.
Super Load Capacity: Double layered beam+8-12mm high-strength alloy steel cargo box, with a load capacity of 30-60 tons, resistant to impact and wear.
Safety Intelligence: Equipped with ABS and exhaust braking as standard, optional hydraulic retarder, and intelligent monitoring system for real-time fault warning.
Reliable and durable: Hande strengthens the axle and suspension system, maintaining power in complex road conditions and adapting to harsh road conditions such as potholes and mud.
Application Scenarios of SHACMAN X3000 Tipper Truck:
Mining transportation: suitable for heavy-duty transportation of ores, coal, sand and gravel, etc. It adopts high-strength frame and thickened wear-resistant cargo box to ensure long-term continuous operation reliability.
Construction engineering: used for the transportation of heavy goods such as sand, gravel, slag, and building materials. Customers can choose sealed cargo boxes according to their needs to meet the transportation requirements of urban construction.
Hydraulic engineering: dredging of rivers, transportation of sand and gravel, and corrosion-resistant design enable the SHACMAN X3000 tipper truck to perfectly adapt to humid environments
Highway/railway construction: Stable transportation of construction raw materials such as asphalt and gravel, adapting to complex and harsh road conditions on different construction sites.
