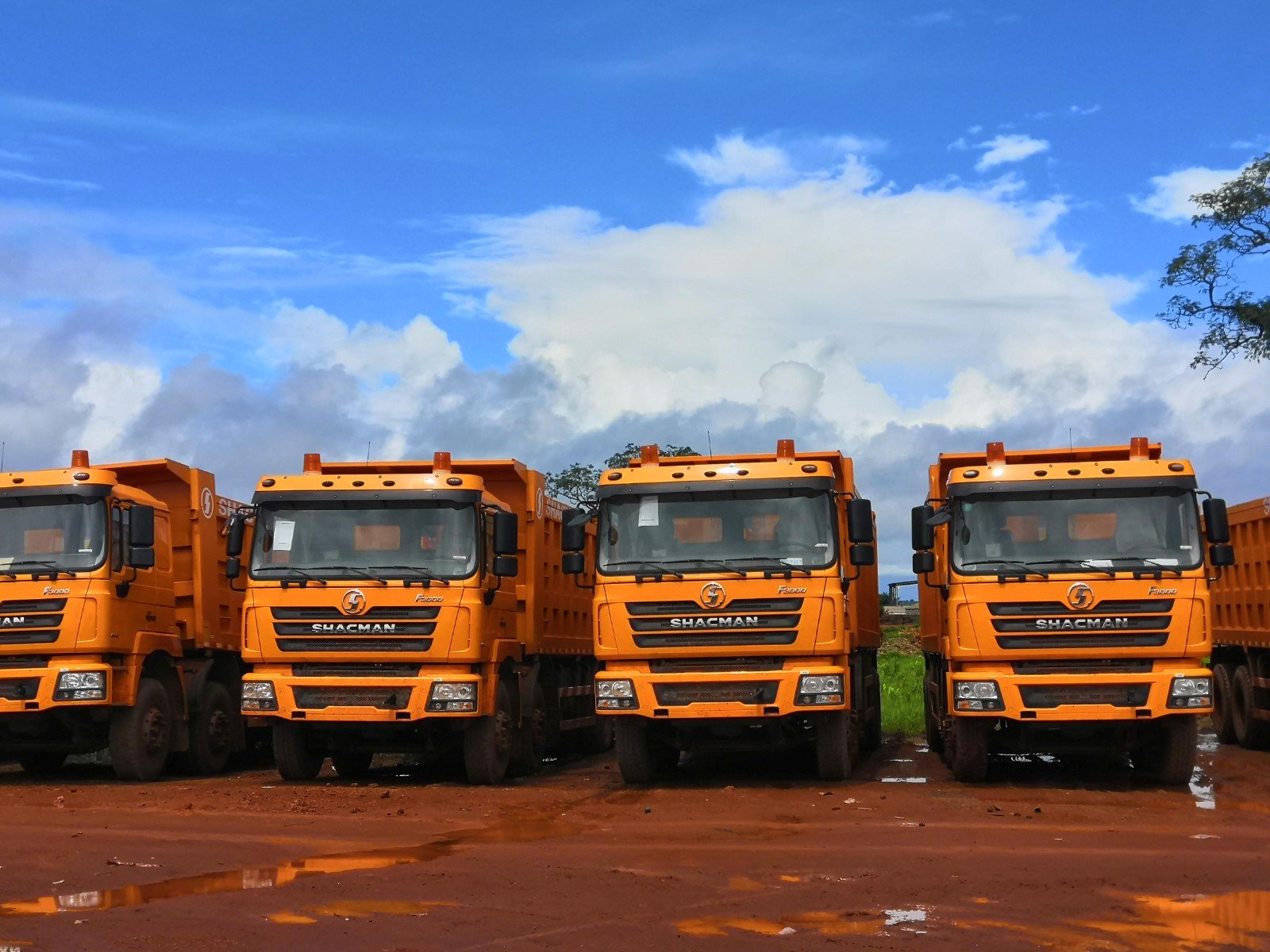

SHACMAN F3000 dump truck features a double layer frame (8+7), strong and rugged, SHACMAN f3000 series can meet any project requirements its owner has.
Brand: SHACMAN
Model: SX3255DR384
Type: Dump Truck
Loading Capacity: 30T
HS CODE:8704109000
Warranty: 1 Year
Certification:SGS, BV, CE, ISO9001, E-mark, CCC, ISO/TS16949

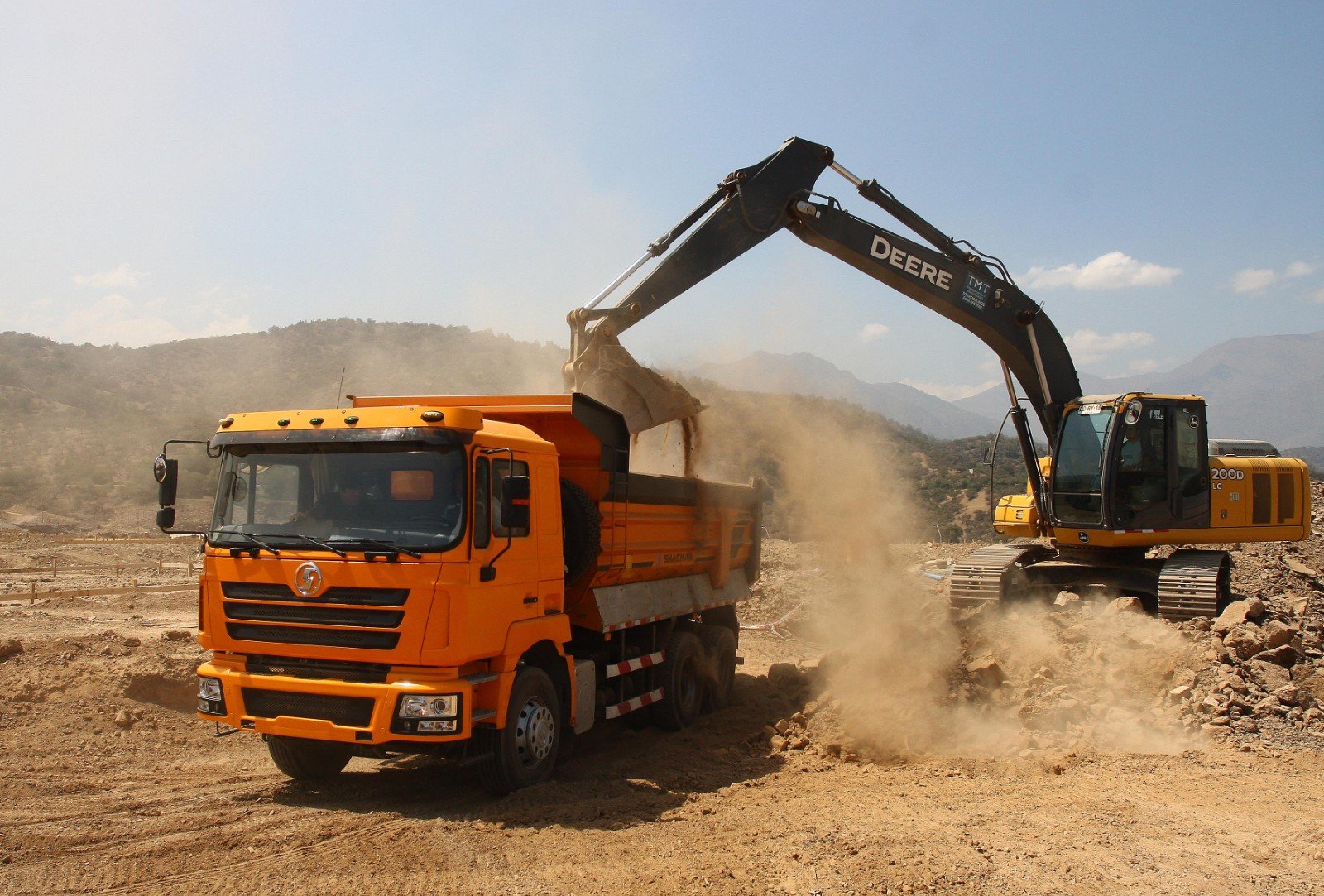

SHACMAN F3000 6x4 dump truck is famous for its high adaptability, high capacity and high driving smoothness. SHACMAN F3000 dump truck features a double layer frame (8+7), SHACMAN f3000 series can meet any project requirements its owner has. It is widely used in mining, large earthmoving projects, infrastructure construction and port terminals.

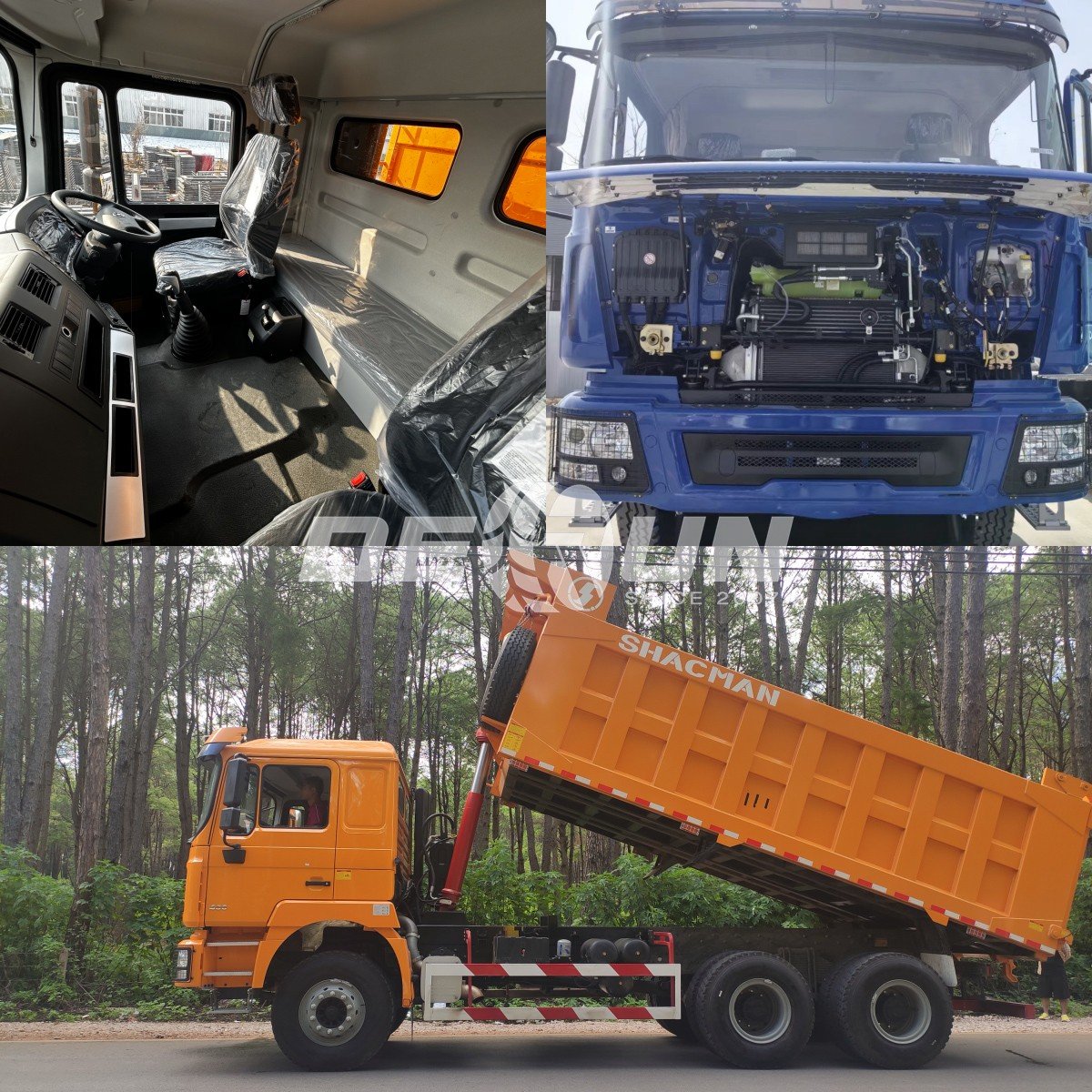

SHACMAN F3000 6x4 Dump Truck mainly use F3000 standard cab, one sleeper with A/C, main airbag and auxiliary lightweight seat.The engine mainly uses Weichai engine, mainly 340/380/400/430HP, displacement from 10L-12L.
| MODEL | SX3255DR384 | |
| Driver position | Left/Right Hand Drive | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3975+1400 | |
| Max. Speed/(km/h) | 75km/h | |
Engine
| Brand | WEICHAI |
| Model | WP10.380E22 | |
| Emission Standard | EURO II | |
Rated output power/（PS） | 279KW/380HP | |
| Displacement(L) | 9.726L | |
Transmission
| Brand | FAST |
| Model | 10JSD180+QH50 | |
| Front axle | Brand | HANDE |
| Model | 9.5T(MAN Technology) | |
| Rear axle | Brand | HANDE |
| Model | 16T (MAN Technology) double reduction driving axle Speed ratio: 5.2622 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850x300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding | |
| Fuel tank | 400L iron fuel tank with bottom protection | |
| Tire | 12.00R20,11pcs | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||
| Other | F3000 extended flat-top cab without top deflector, hydraulic main seat, ordinary rearview mirror, ordinary heater, manual window shaker, manual flip, steel bumper, three-level boarding pedal, no central lock, oil bath air filter, ordinary exhaust, domestic steering gear, ordinary steering wheel, center front traction seat, oil pan protection grille, front and rear stabilizer bars, reinforced taillight protection grille, 180Ah maintenance-free battery Four-point hydraulic suspension, sunshade lights are all yellow, SHACMAN logo, full English logo, cast front extension beam, a long-term coarse filter, iron air tank, nut protection cap, reversing buzzer, exhaust casting bracket, transmission telescopic shaft control, battery box anti-theft, fuel tank cap anti-theft, LED taillight, 50T jack, economic version vehicle tool box | |
| Upbody | Size:5600*2300*1500（mm） Thickness: Bottom 10mm side 8mm | |
Application:
High adaptability: The low-speed, high-torque engine delovers quick start and excellent climbing ability to adapt to all kinds of harsh engineer road condition.
By optimizing the design of the cooling and exhaust system, ground clearance of F3000 is increased, making it better suited to special road conditions.
High Capacity: The advanced axle adopts the double-stage speed reduction axle technology and heavy- duty off-road vehicle axle technology, and has undergone more than 1.3million of strong load capacityy test without failure.
Steel plate spring suspension withh a new type of balanced suspension bring better load capacity and durability.
High Driving smoothness:
The cab dydraulic suspension with high-quality shock absorbers and stabilizer bars on the front and rear axles allows to cope with bumpy roads.
