SHACMAN F3000 mixer truck is specially designed for concrete transportation, with powerful power and efficient mixing technology. The capacity can reach 10m ³, ensuring the quality of concrete. Durable structure and flexible handling make it an ideal choice for the construction industry.
MODEL: SX5255GJBMV404C
Type: Truck
Loading Capacity: 8/10/12CBM
HS CODE: 8705400000
Warranty: 1 Year
Certification: SGS, BV, CE, ISO9001, DOT, CCC, ISO/TS16949,E-mark
The SHACMAN F3000 mixer truck is a high-performance equipment designed specifically for concrete transportation, with excellent mixing and transportation capabilities. As a SHACMAN F3000 mixer truck, its large capacity design can accommodate up to 10m ³ of concrete, ensuring a stable and continuous supply of concrete during large-scale construction. The SHACMAN F3000 mixer truck is made of high-strength materials and sturdy structure, which can maintain excellent durability and extend its service life under various harsh working conditions. In addition, the SHACMAN F3000 mixer truck is equipped with a powerful power system, providing excellent climbing ability and stability, suitable for various construction environments. The optimized driving system not only improves handling performance, but also makes it more flexible to operate in narrow spaces. The SHACMAN F3000 mixer truck is widely used in various fields such as residential, commercial construction, road engineering, bridge construction, and urban infrastructure, and is an indispensable and important equipment in the construction industry.
| MODEL | SX5255GJBDV404C | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3975+1400 | |
| Max. Speed/(km/h) | 75km/h | |
Engine
| Brand | CUMMINS |
| Model | ISME420 30 +PTO Jacob | |
| Emission Standard | EURO III | |
| Rated output power/（PS） | 308KW/420HP | |
| Displacement(L) | 10.8L | |
Transmission
| Brand | FAST |
| Model | 12JSD200T-B | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double driving axle Speed ratio: 5.262 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850x300(8+7) | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding bolts | |
| Fuel tank | 300L Aluminum alloy | |
| Wheels and tires | 315/80 R22.5 10+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | Hydraulic main seat, four point hydraulic suspension cab, electrically controlled automatic constant temperature air conditioning, electric window rocking machine, manual flipping, ordinary air filter, metal bumper, hinged boarding pedal, 165Ah maintenance free battery, spare tire rack, SHACMAN logo, all English logo, long-distance throttle controller shipped with the vehicle (only electronic control engine) | |
| Upbody | 10 | |

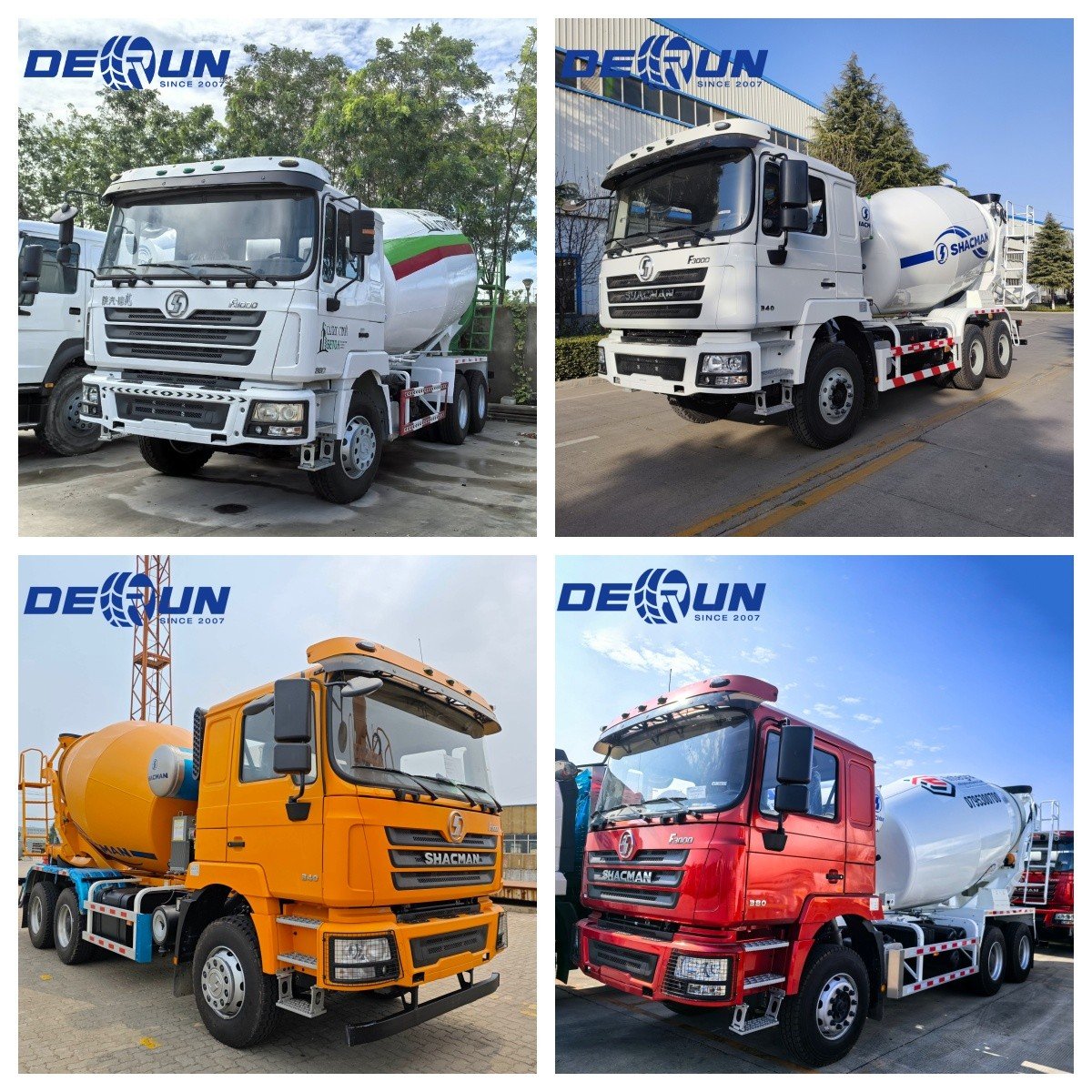

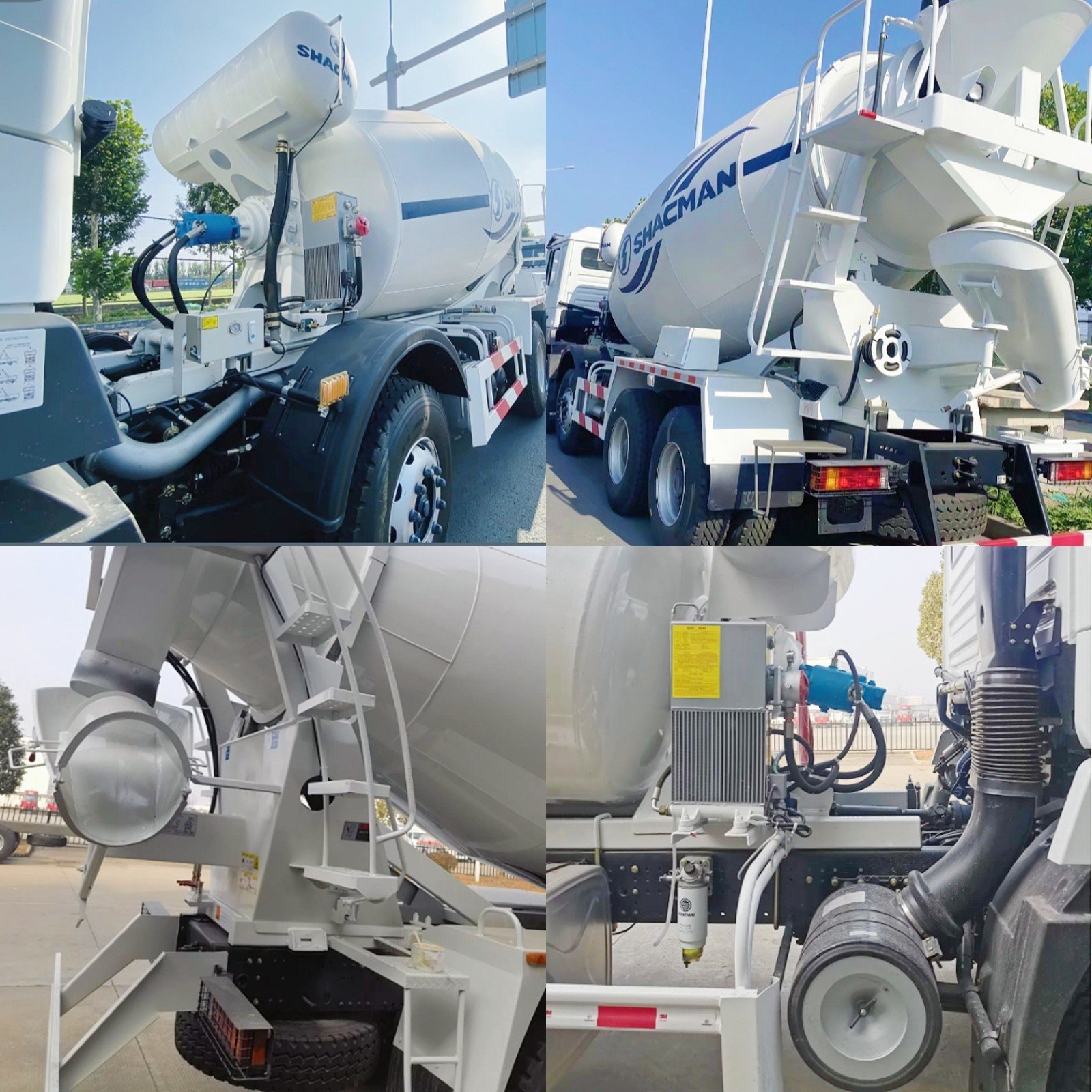

Detail Photos of SHACMAN F3000 Mixer Trucks
Advantages of SHACMAN F3000 Mixer Trucks
Efficient mixing: Advanced mixing technology is adopted to ensure the uniformity and quality of concrete.
Large capacity: can accommodate 10m ³ of concrete, meeting the needs of large-scale construction.
Durable design: Made of sturdy structural materials, it can adapt to various harsh working conditions and extend its service life.
Powerful power: equipped with an efficient power system, providing excellent climbing ability and stability.
Flexible handling: Optimized driving system improves SHACMAN F3000 Mixer Trucks’ handling performance and facilitates operations in narrow spaces.
Application of SHACMAN F3000 Mixer Trucks
Construction: Widely used in residential, commercial, and infrastructure construction.
Road engineering: suitable for concrete pouring on highways and urban roads.
Bridge construction: Provide stable concrete transportation during bridge construction.
Prefabricated component factory: SHACMAN F3000 Mixer Trucks is used to produce prefabricated concrete components, improving production efficiency.
Urban construction: Support the construction of urban water conservancy, drainage and other infrastructure projects.

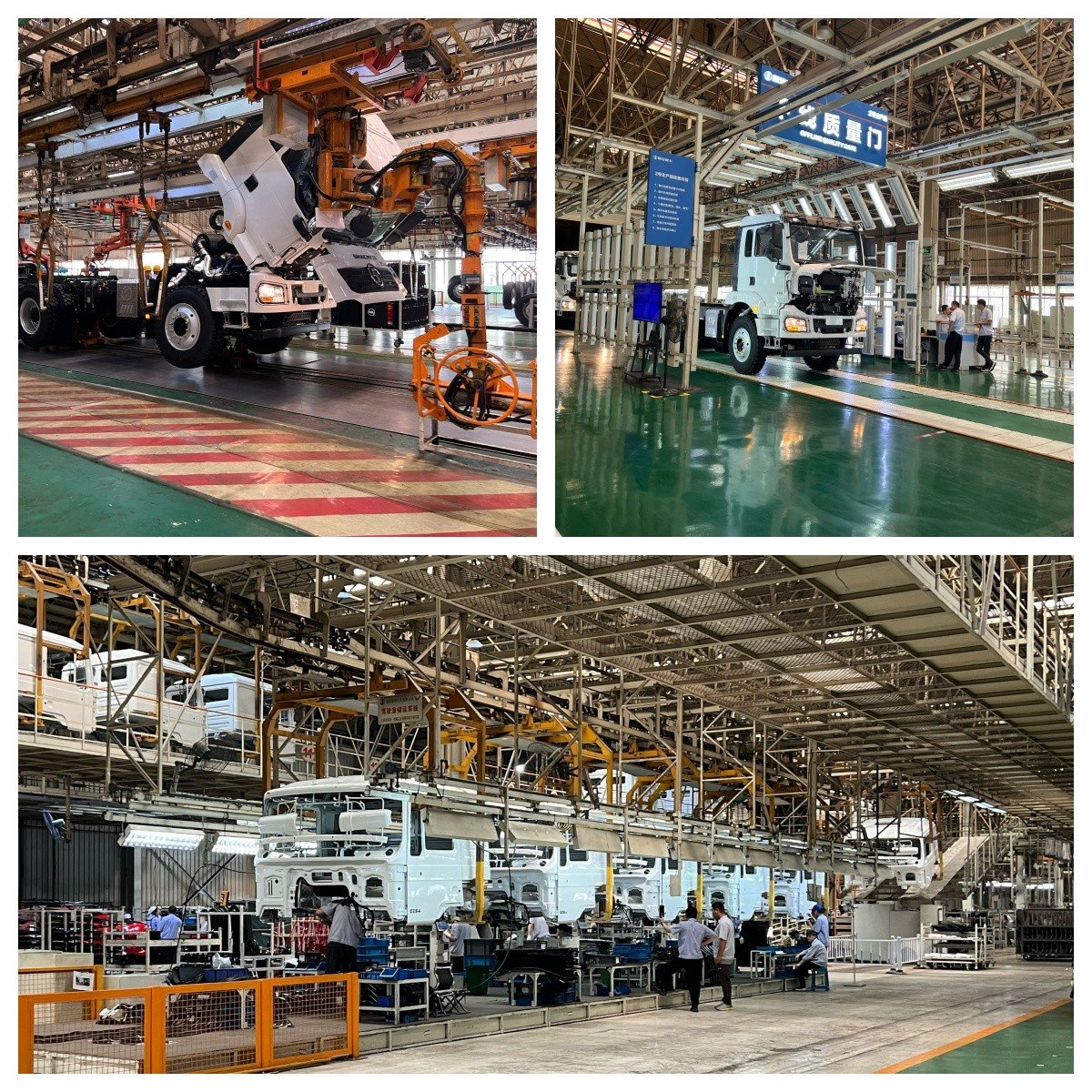

Our Factory

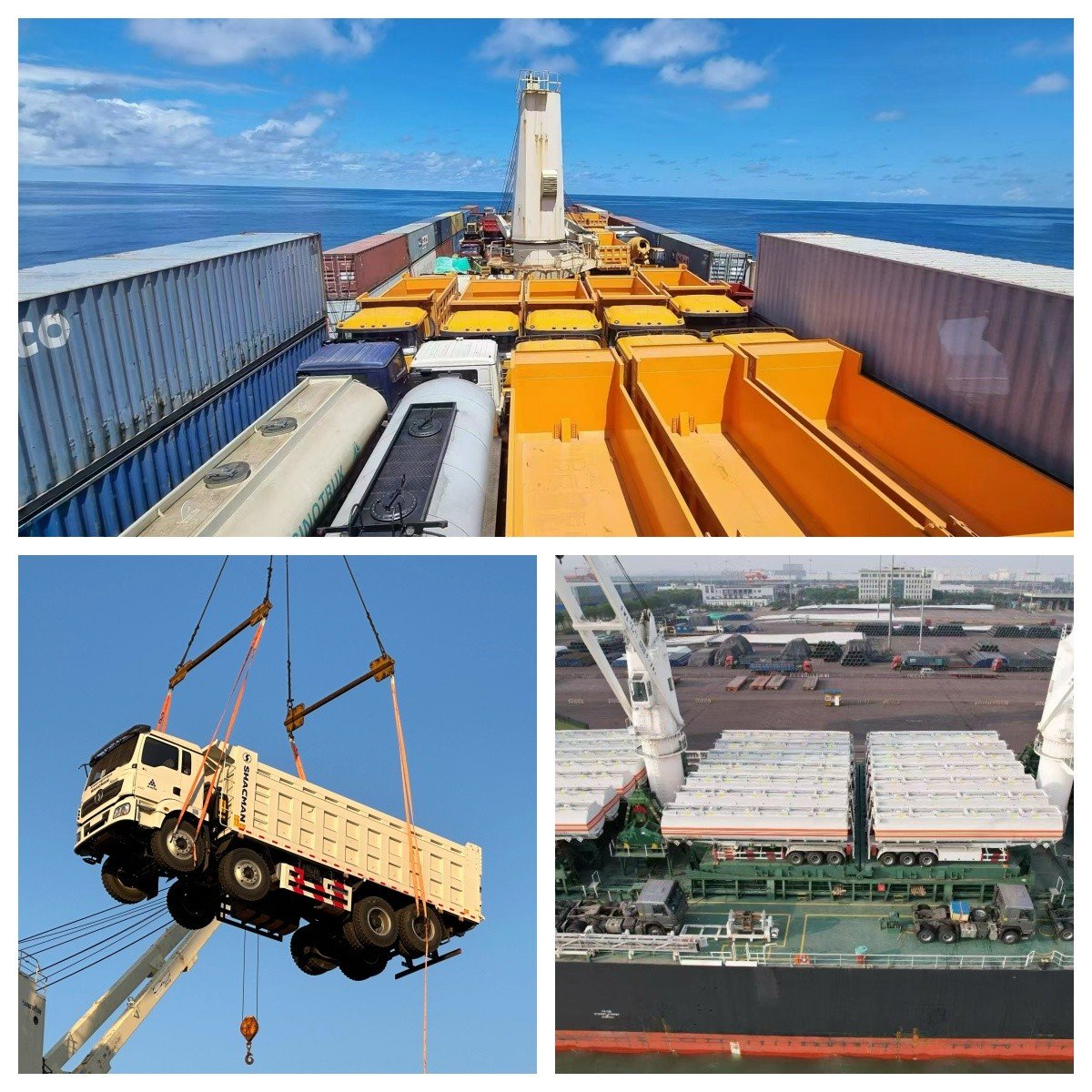

Packing and Shipping
