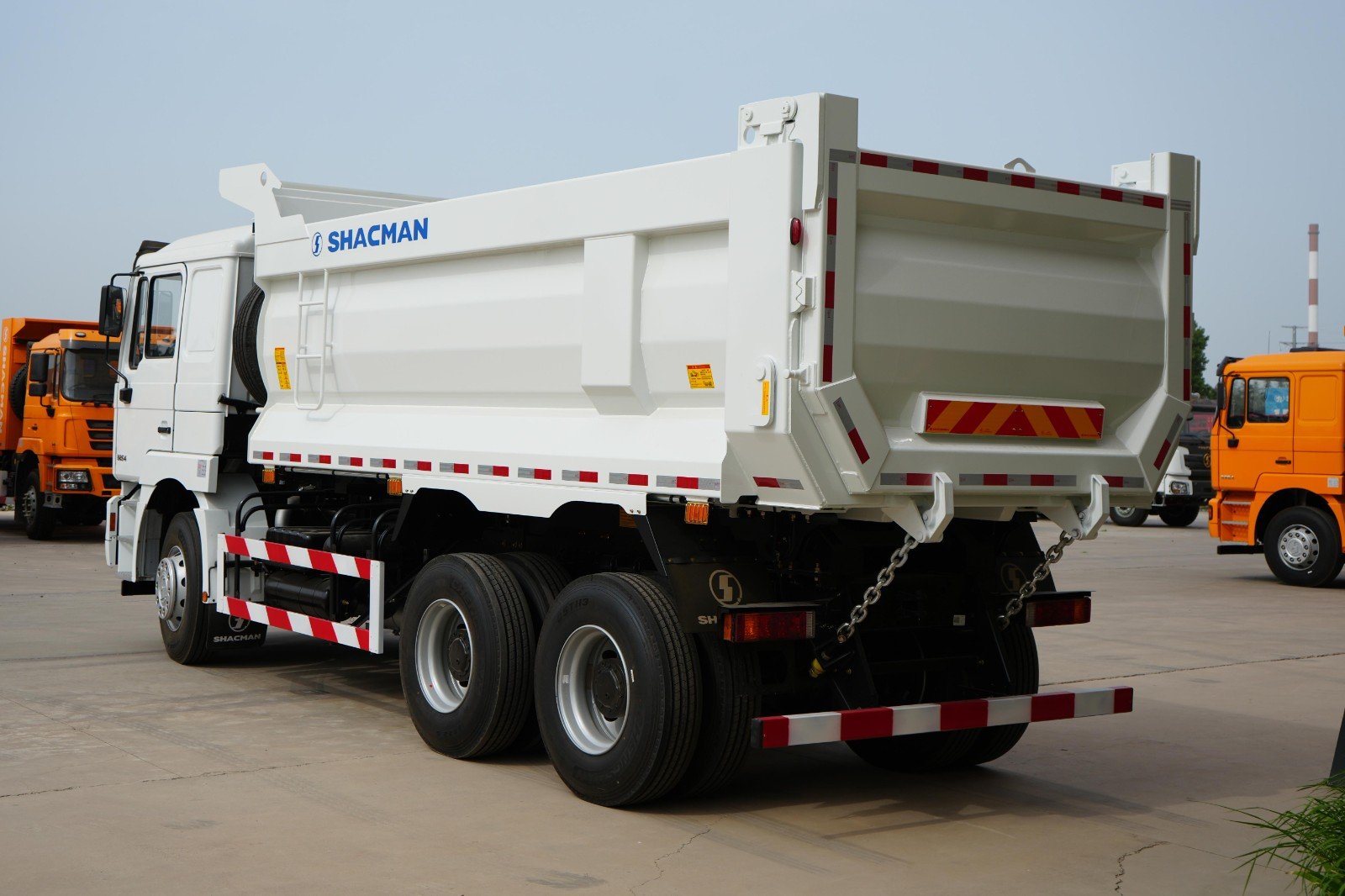

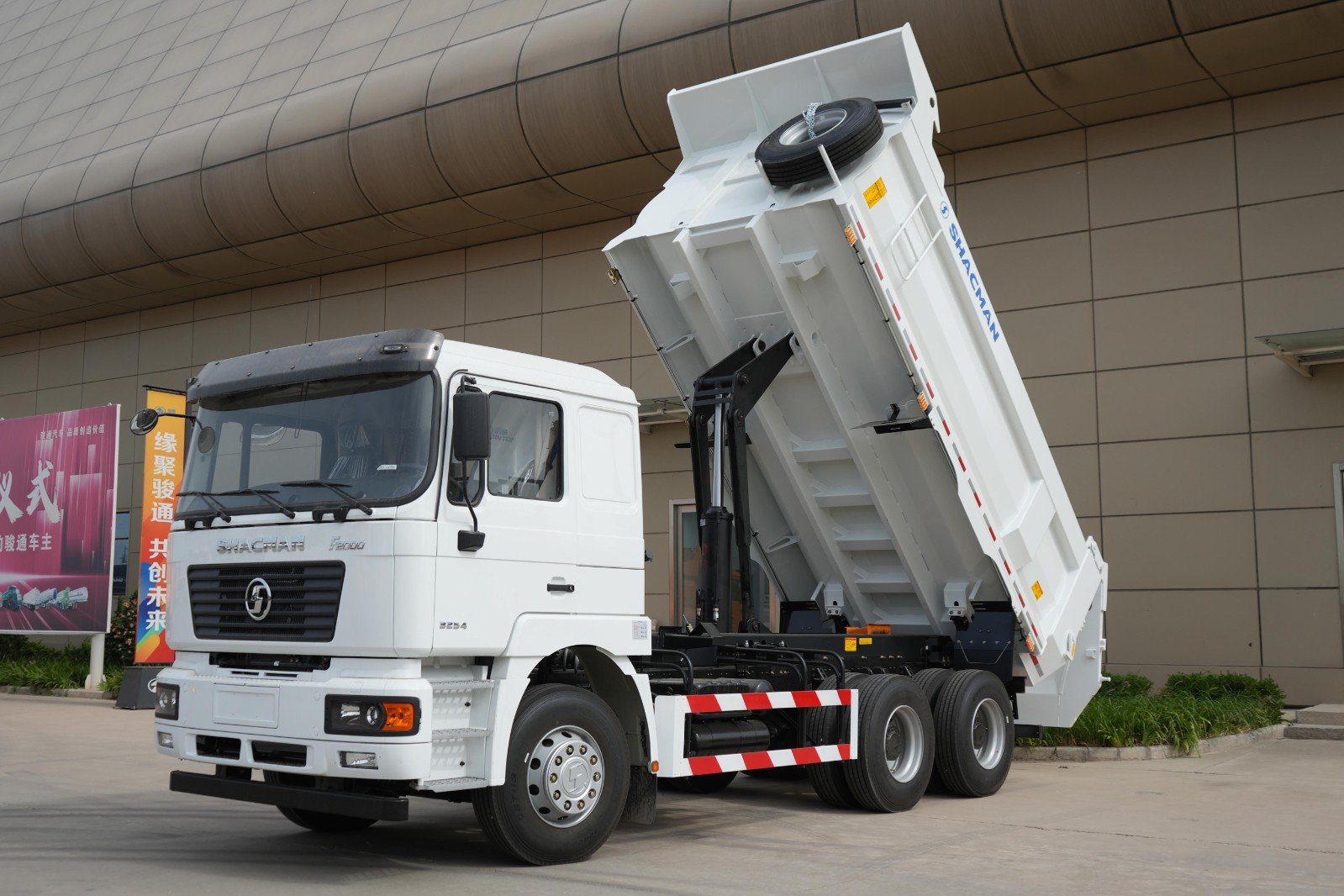

Shacman F2000 dump truck is a heavy-duty tipper truck, mainly used in short-distance transportation scenarios such as engineering construction, mining transportation, sand and gravel, earthwork, etc. Equipped with a high-quality engine, a cargo box made of high-strength steel and superior-quality tires, it can adapt to different road conditions and improve work efficiency.
Brand: SHACMAN
Model: SX3255JM384
Type: Truck
Loading Capacity: 30T
HS CODE:8704230090
Warranty: 1 Year
Certification:sGS, BV, CE, ISO9001, DOTCCC, ISO/TS16949
SHACMAN F2000 dump truck usually equipped with Weichai WP series high horse power diesel engine with high torque at low speed, suitable for heavy loads and complex road conditions. High strength double layer frame design, strong torsion resistance, adapt to bad road conditions. The cargo box is made of high-strength steel plate, and the side wall can be thickened to prevent wear. The hydraulic lifting system has strong lifting force and good stability. The cab is wide body flat roof or high top cab, with spacious interior space, equipped with basic functions such as mechanical shock absorbing seats and simple air conditioning, focusing on practicality.
Model | SX3255JM384 |
Cab | SHACMAN F2000 Cab Single bed Air conditioner |
Dimension(Lx W xH)(mm) | 8275×2500×3450mm |
Payload(kg) | 30000kg |
Enginebrand | Weichai Engine |
Engine model | WP10.300E22,300hp |
Emission Standard | Euro-II |
Driving type | 6×4 |
Clutch | φ430diaphragm spring |
Gearbox | FAST 10JSD140,10 Forward&2Reverse,Manual |
Front axle | 9.5T MAN 9500kg |
Rear axle | 16TMAN 2×16000kg |
Tire | 12R22.5,10+1pc |
Cargo box size(mm) | 5200×2300×1500mm(18m³) bottom8mm,side4mm |
Lifting style | Middlelifting |
Shacman F2000 is suitable for high load bearing capacity, suitable for heavy cargo transportation such as mining and coal; short distance sand and gravel, slag dumping, fast and efficient hydraulic system, transoprt material transportation in highway and water conservancy projects. Shacman F2000 tipper truck has high cost performance, low maintenance cost, and a wide range of spare parts; outstanding power and load bearing capacity, suitable for heavy load needs; mature technology, and good reliability.
