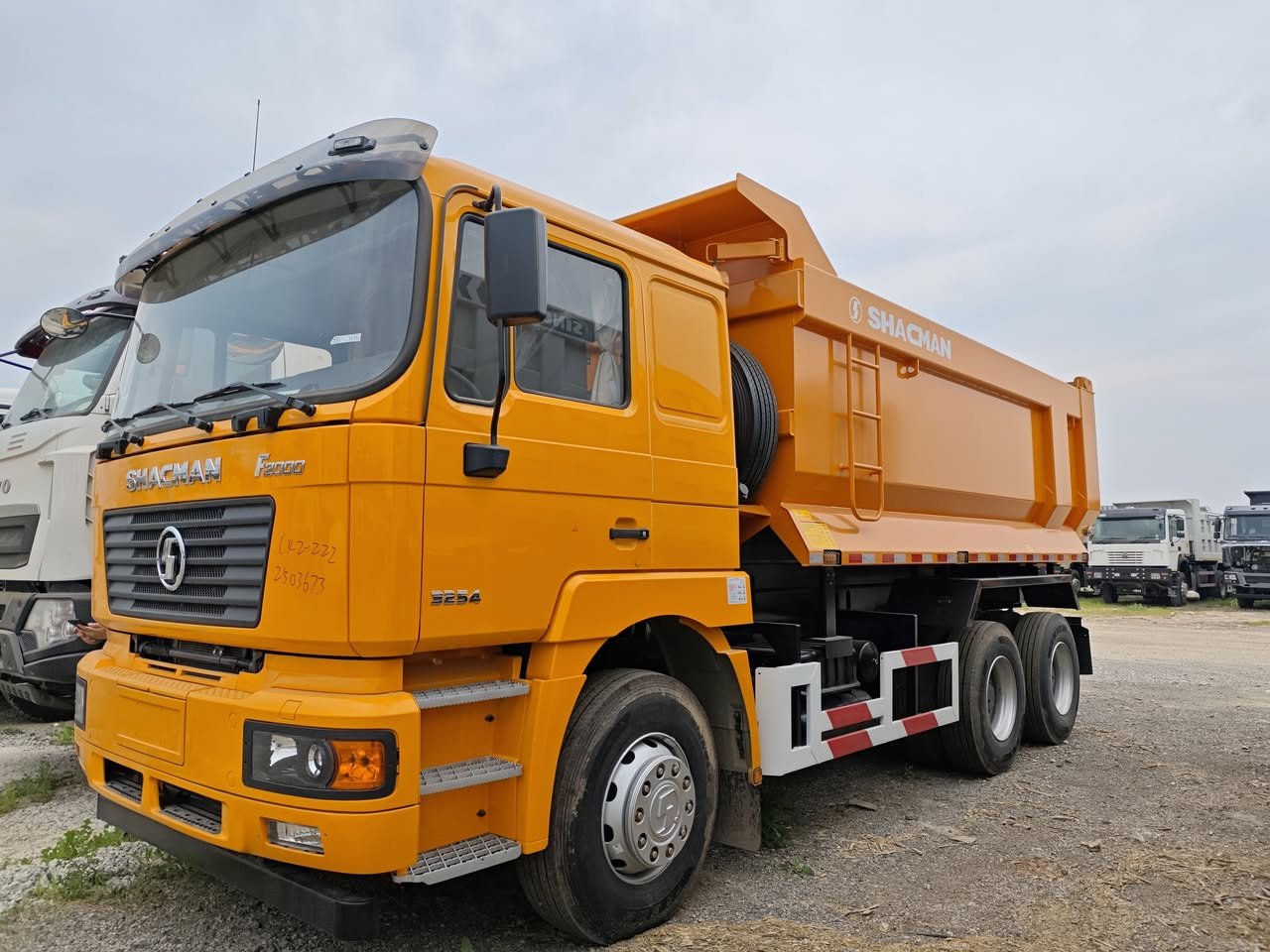

SHACMAN F2000 6x4 Dump Truck equipped with Weichai engine, few leaf spring, lightweight high strength frame, rubber suspension and other advanced technologies. It is very suitable for multi-functional transportation such as urban construction.
Brand: SHACMAN
Model: SX3255JM384
Type: Dump Truck
Loading Capacity: 30T
HS CODE:8704109000
Warranty: 1 Year
Certification:SGS, BV, CE, ISO9001, E-mark, CCC, ISO/TS16949
SHACMAN F2000 6x4 Dump Truck equipped with Weichai 290HP engine, few leaf spring, lightweight high strength frame, rubber suspension and other advanced technologies. Shacman trucks stand out for its durability, efficiency and affordable price. With a comprehensive after-sales support network, we guarantee the availability of spare parts and maintenance services at all times, so is very suitable for multi-functional transportation such as urban construction.
| MODEL | SX3255JM384 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase(mm) | 3775+1400 | |
| Max. Speed(kmh) | 75kmh | |
Engine
| Brand | WEICHAI |
| Model | WP10.290E32 | |
| Emission Standard | EURO II | |
| Rated output power（PS） | 217KW/290HP | |
| Displacement(L) | 9.726L | |
Transmission
| Brand | FAST |
| Model | 9JS135+QH50 | |
| Front axle | Brand | HANDE (MAN Technology) |
| Model | MAN 7.5T | |
| Rear axle | Brand | STR |
| Model | 2*16T Speed ratio: 5.73 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology ZF | |
| Frame | 850*300（8+7） | |
| Suspension | Front and rear multi-leaf spring four main flims+four horse riding bolts | |
| Fuel tank | 380L | |
| Wheels and tires | 12R22.5 10+1 | |
| Brakes | Running brake: Dual circuit compressed air brake | |
| Parking brake: Air discharging with spring control | ||
| Auxiliary brake: Engine exhaust brake | ||

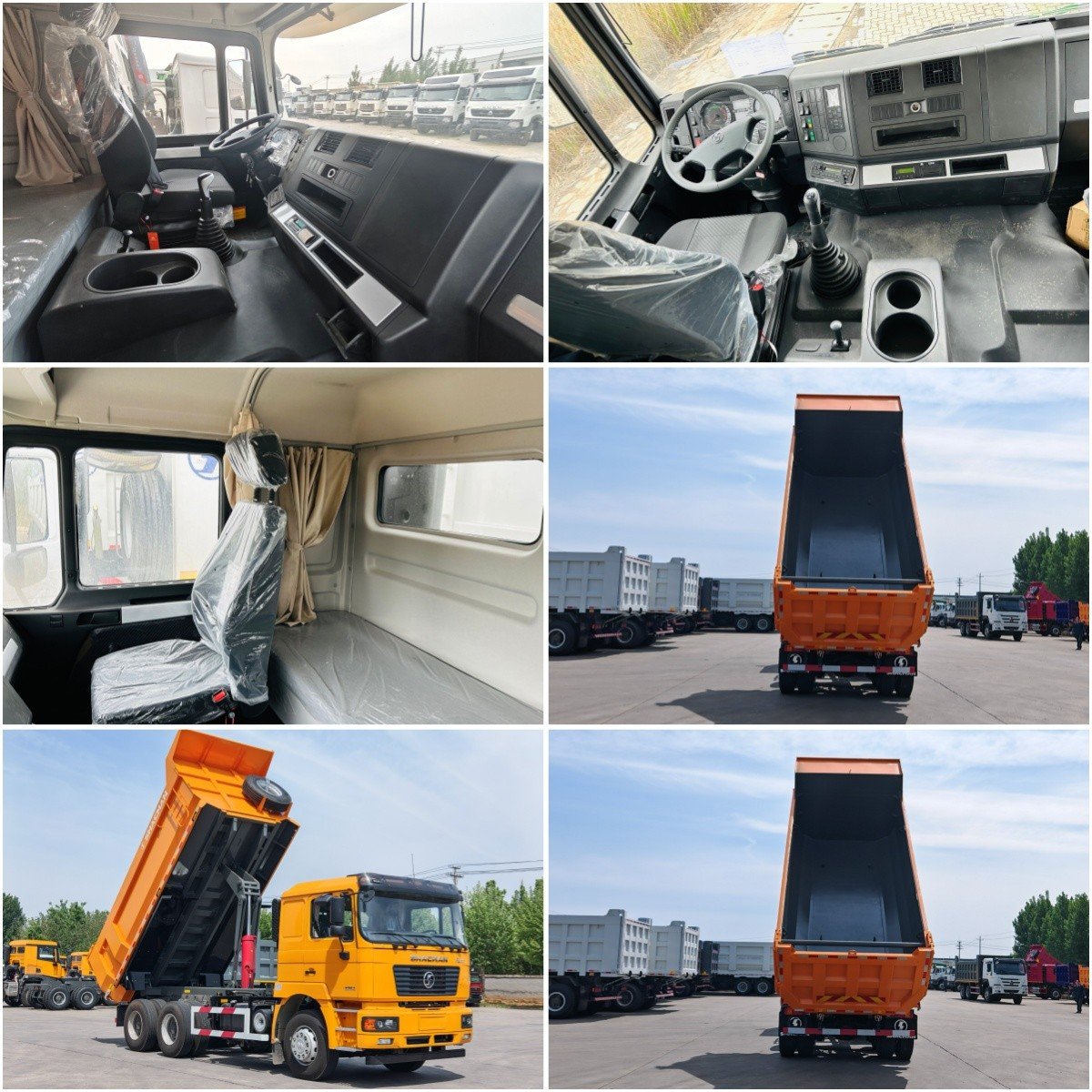

| Cabin | F2000 medium length flat top cab without top air deflector, Hydraulic main seat, ordinary rearview mirror, hot zone air conditioning, daytime running lights, electric window shaker, manual flip, oil bath air filter, 165Ah maintenance-free battery, SHACMAN logo, full French logo, special sign (3255) / tires / triangle warning sign / lamps / glass / horn / mirror / seat belt with E-MARK certification / | |
| Upbody | U Shape 5200*2300*1400(mm) Bottom 8mm Side 6mm | |
Applications：
-The 290 hp Shacman F2000 6x4 dump truck is ideal for a variety of industries:
-Construction and roadwork: Efficiently transport sand, gravel and crushed stone.
-Mining and quarrying: Easily handle heavy loads.
-Infrastructure construction: Support large construction projects.
-Bulk material transport: Designed for efficient long-distance haulage.
