The 35CBM Bulk Cement Tank Trailer is a heavy-duty, high-capacity semi-trailer specifically designed for the efficient transportation of bulk cement and other dry powder materials. With a volume of 35 cubic meters, this trailer is an ideal solution for cement plants, cement warehouses, and large construction sites that require bulk material handling capabilities.
BRAND: DERUN
MODEL: DR9550TDG
Type: Trailer
Loading Capacity: 60T
HS CODE: 8716319000
Warranty: 1 Year
Certification: SGS, BV, CE, ISO9001, DOT, CCC, ISO/TS16949
The 35 CBM bulk cement tank trailer is a highly specialized and versatile vehicle widely employed across numerous sectors such as industry, agriculture, commerce, power plants, and the construction industry. It efficiently handles the transportation of bulk materials like cement, fly ash, lime powder, and mineral powder.
This bulk cement trailer comprises a robust vehicle chassis, a dedicated bulk cement tank body, an intricate trachea system, and an automated unloading device. The tank body itself is primarily constructed from a cylindrical structure, complete with a top-mounted feeding port, a fluidized bed, a discharging pipe assembly, an intake pipe, and various other crucial components. Additionally, the front and rear air chambers are equipped with individual air inlet pipes, allowing for independent opening and control via ball valves.

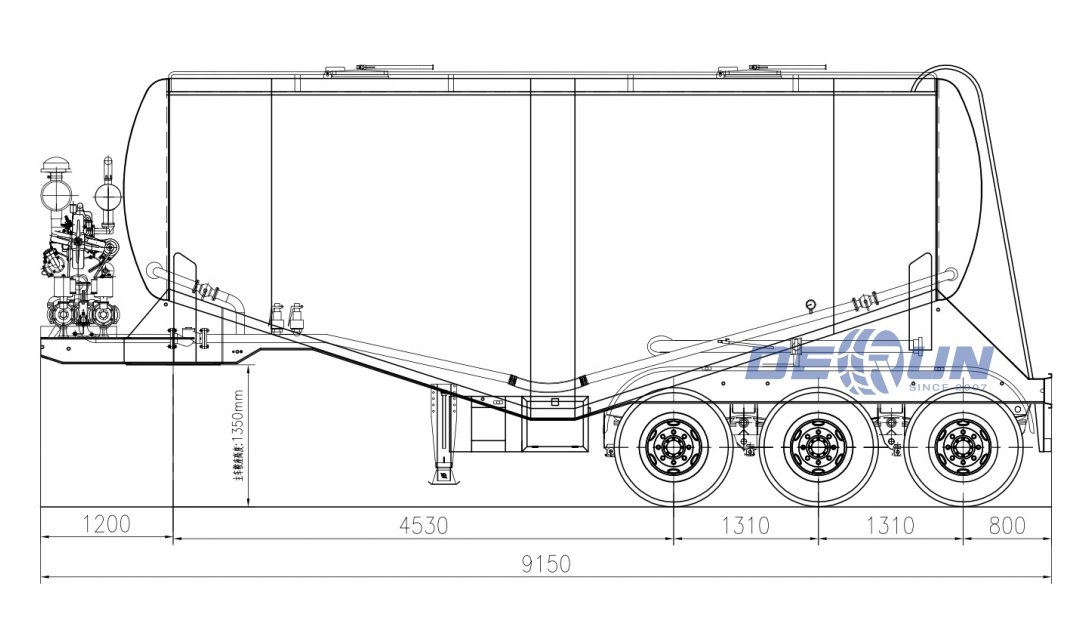

Dimension(L*W*H): 13000 *2500*3990 (mm)
Max. Payload: 70Tons
Volume: 50 CBM
Tare weight: 13500 (kg)
Kingpin: JOST 50” or 90” bolt-in
Landing gear: JOST 19”
Tire size: 12R22.5,12.00R20,315/80R22.5
Rim size: 9.00*22.5 (13sets)
Axle: FUWA/BPW/DERUN brand
Suspension: Mechanical/Air suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Diesel Engine: WeiChai Huafeng Brand
Air compression: FUDA / SuZhou Brand
Painting: Zinc-rich & Polyurethane painting

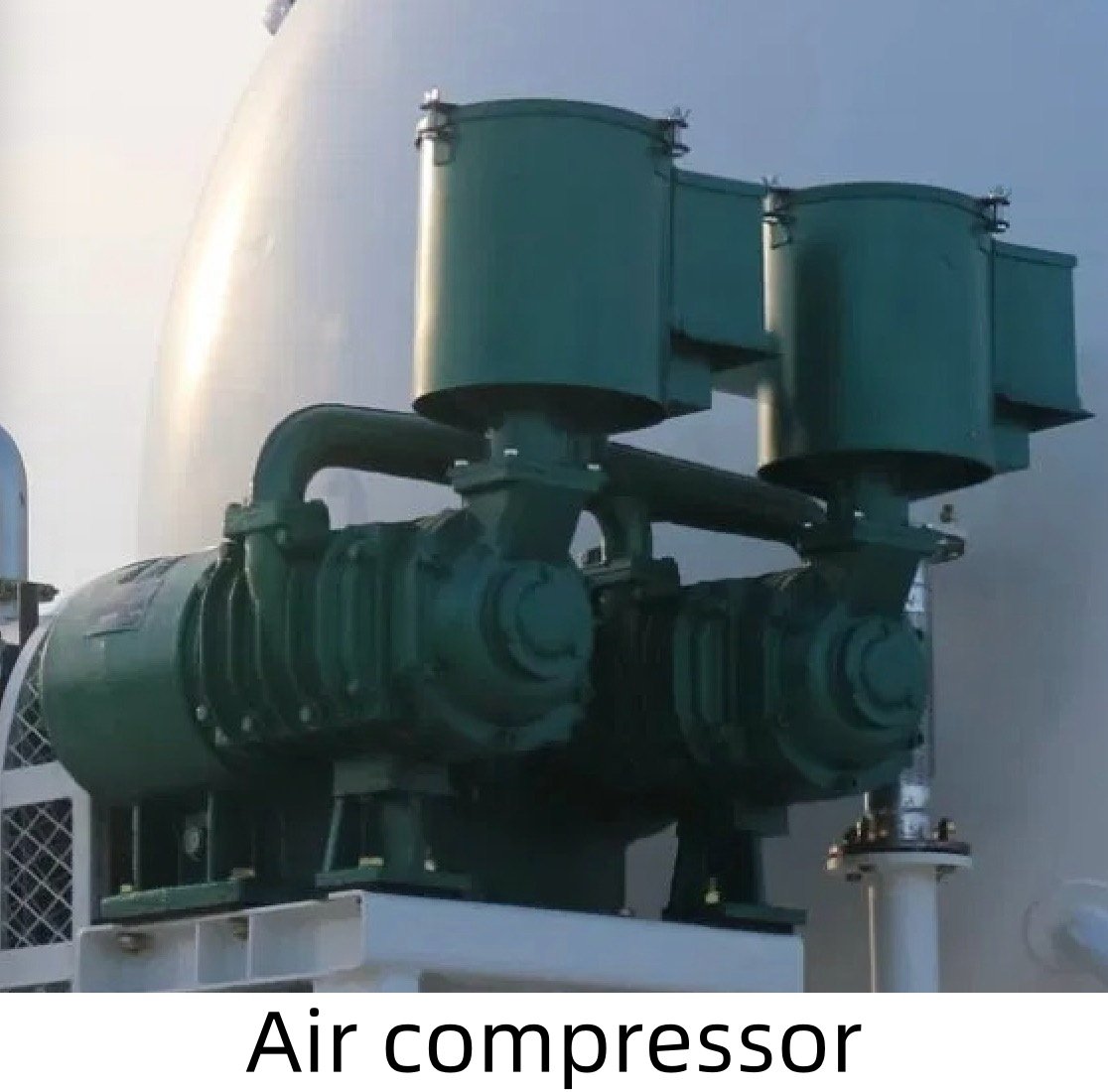

Air compressor: The air compressor of this Bulk Cement Semi Trialer can Provide power when the powder tank semi trailer unloading to improve unloading efficiency.

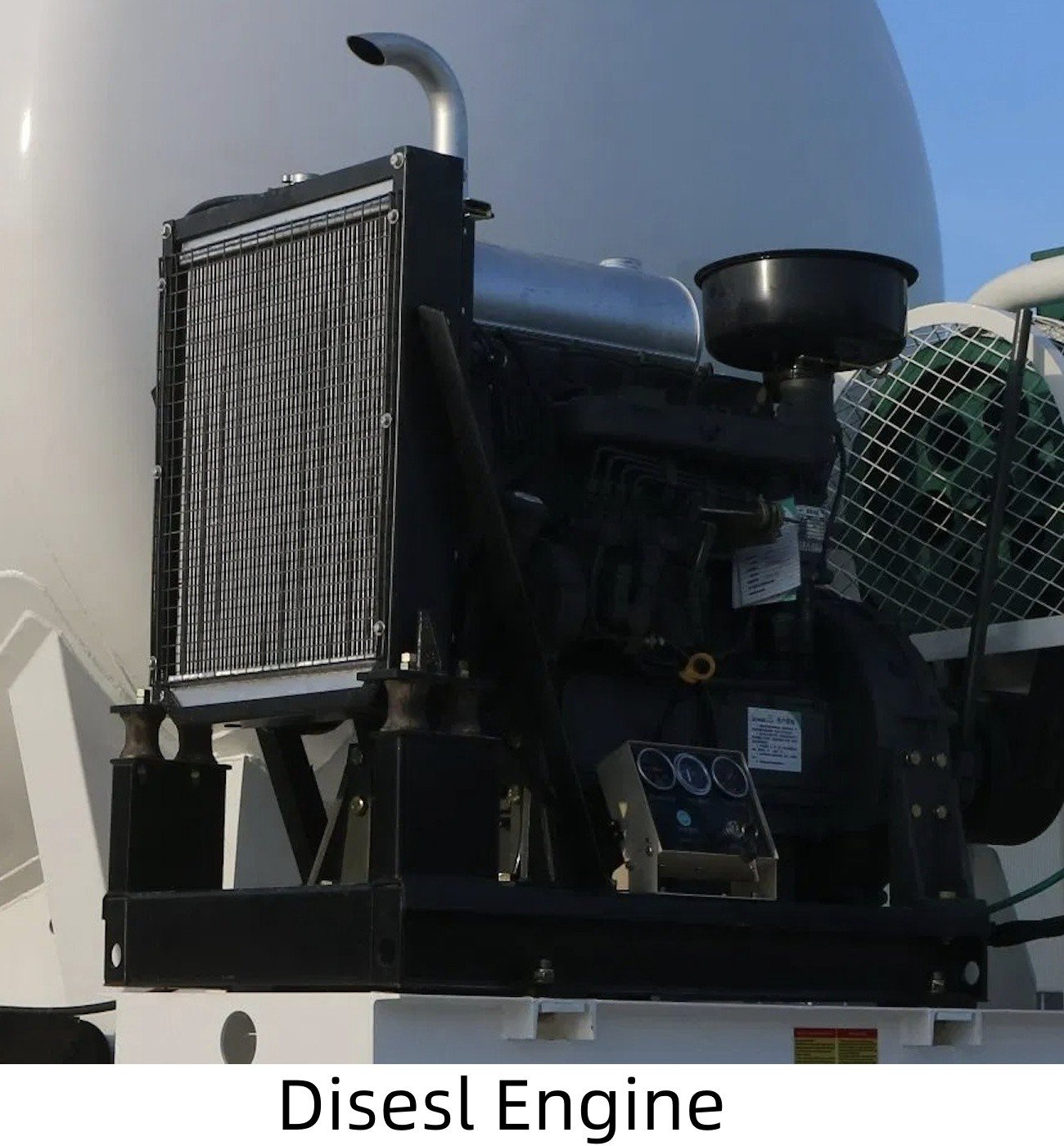

Disesl engine: The Powder Semi Trailer use Weichai diesel engine, has strong power and can provide stable power for air compressor to ensure smooth unloading.

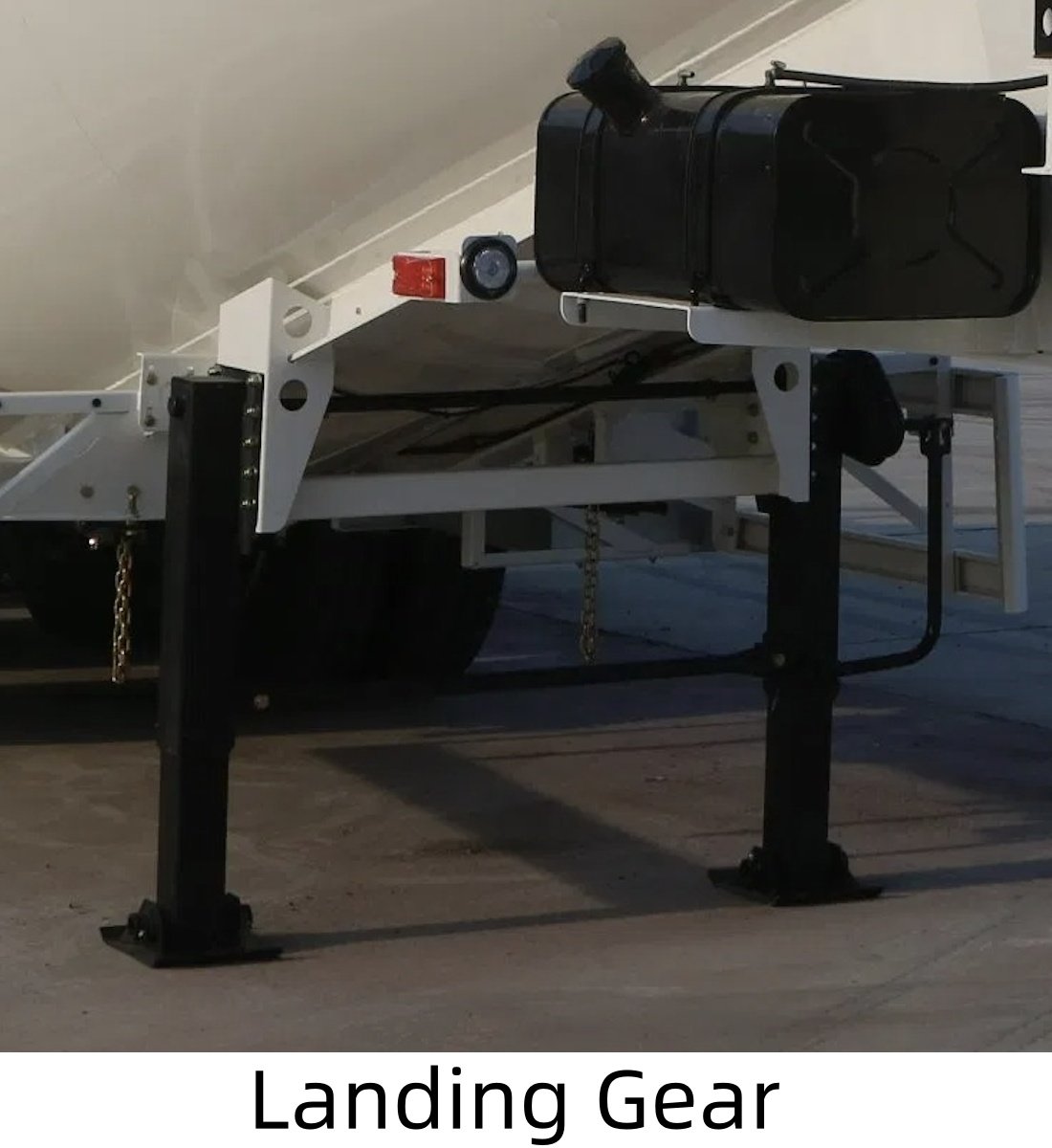

Landing Gear: The landing gear provide additional support points, better distributing the weight of the bulk cement semi trailer, protect the powder tanker semi trialer's components and extend service life.
The powder bulk cement transport trailer drives the air compressor with the power of the trailer and sends the compressed air through the pipeline to the gas chamber at the lower part of the sealed tank. The powder particles on the liquid bed of the gas chamber are suspended into a flow state. When the pressure in the tank reaches the rated value, the unloading valve is opened, and the flowing material is transported through the pipeline.
